WarDrive Rig: “Ferris 3 dot O” – New WiFi Configurations”
(Now with less Antennas)



Parts List:

• 16 MediaTek MT7921K (Amazon Reference)
• 2 AmfelTec SKU 085-01 Squid Carrier Board (amfeltec website)
• 1 Hak5 WiFi Coconut (SOLD OUT – Hak5 )
• 2 ZIMABoard Single Board Computers
  (ZimaBoard.com)
  (With a SATA SSD each)
• 1 Mini-Box 19v Regulated supply for the Intel NUC (DCDC-NUC)
  (Sourced Mini-Box)
• 1 NUCi7 11th Gen
• Fuse Break out box for power distribution (Sourced Amazon)
• 12v wide range input regulator for ZIMABoard/USB  (Sourced Amazon)
• 12v Temp Sensor Fan Controller (Sourced Amazon)
• CradlePoint IBR200 (Cellular Router) (eBay)
• Netgear 5 Port Gigabit Switch (random parts box box in garage)

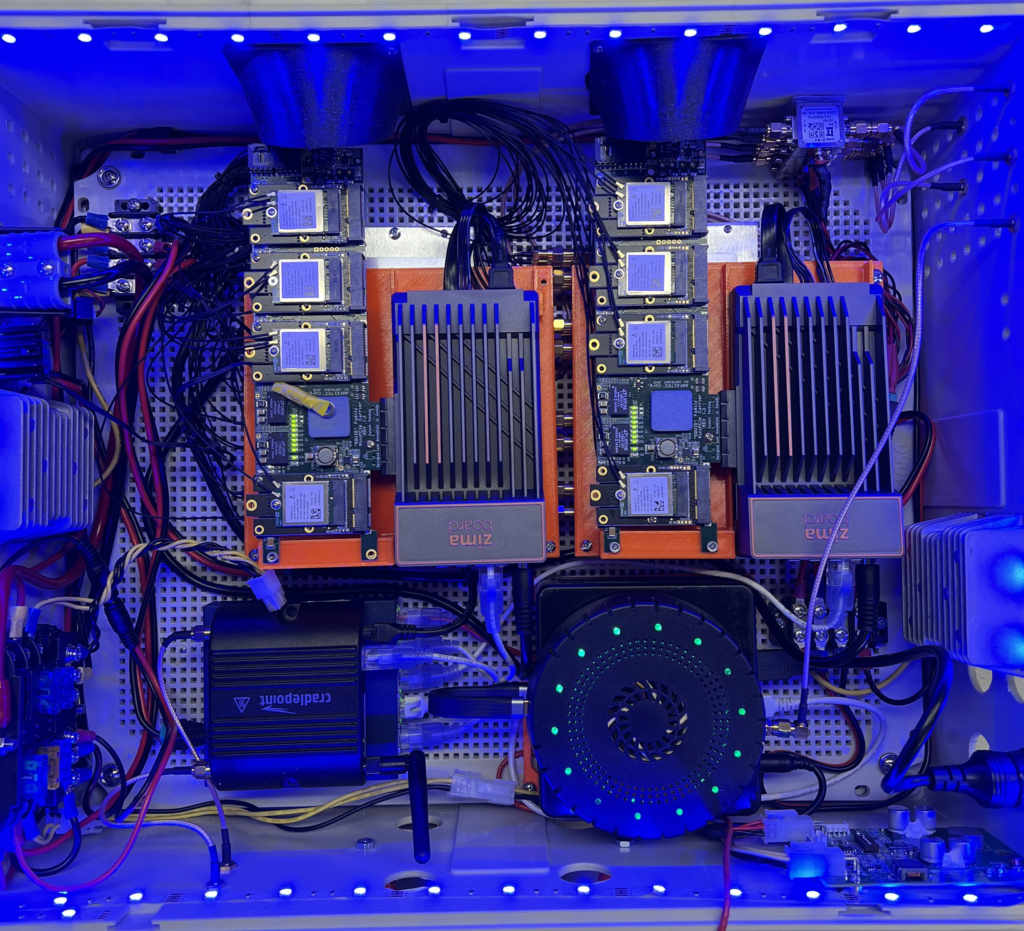

• Mounted inside a clear hinged box from Amazon sized: 510x410x200mm
• USB GPS GM-3N 10Hz (Currently unavailable) – Specs here:(https://www.transystem.com.tw/www/product.php?b=G&m=pe&cid=4&sid=20&id=123)
• (1) AccelTex (ATS-00-245-46-6RPTP-96) (Sourced via eBay)
  6 Element, 2.4-5.8 WiFi Antenna with RP-SMA and 96″ length cables.
• 4 Mini-Circuits Antenna Splitter/Combiner
  (https://www.minicircuits.com/WebStore/dashboard.html?model=ZN8PD-642W-S%2B)
• 4 LotusSys Signal Amplifiers
  (https://www.lotussys.com/collections/lna/products/lna700m6p0g)



Setup & Config Changes:

This build took a few new steps forward to antenna reduction – because boy did it need it.
The reduction of antennas was really required — below shows








GitHub Link to outline the supervisord configs for the WarDrive Kismet controls:
https://github.com/busysignal



Check out the Discord for RF Hackers Sanctuary and Kismet Wireless.

Happy WarDrive WiFi Finding.
